Ready for Deployment

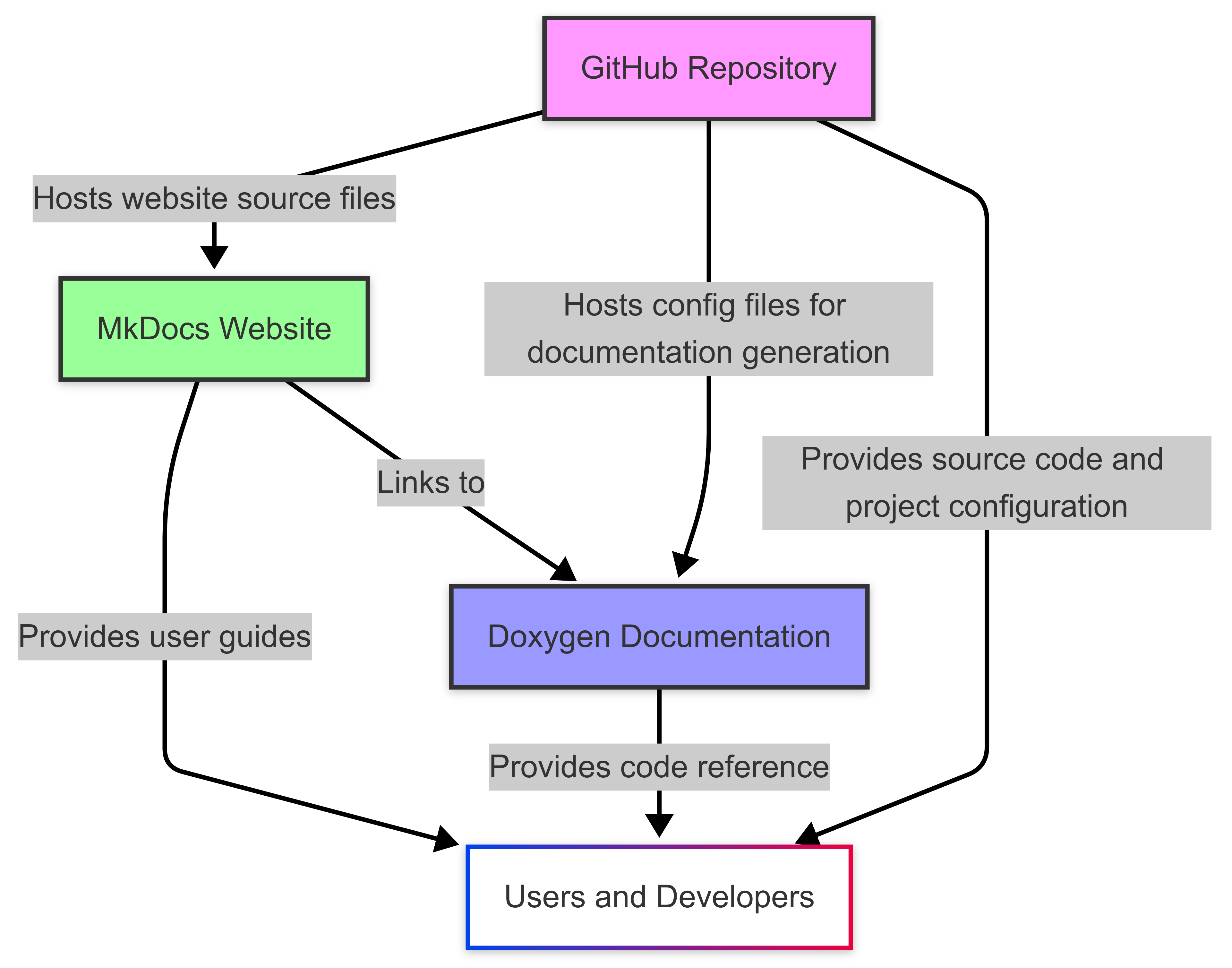

As illustrated in the above diagram, this project provides two types of online resources to support users and developers:

MkDocs website hosts user guides and general project documentation, while Doxygen pages offer detailed source code documentation for reference.

This document outlines the basic steps to deploy these two websites.

Deploy MkDocs Website

1. Set up Environment

Create a Python virtual environment at the root of the project to isolate dependencies:

python -m venv venv

Activate the virtual environment:

source venv/bin/activate

Install MkDocs and the Material theme:

pip install mkdocs mkdocs-material

2. Configure

Modify mkdocs.yml to configure the project website. Most options are well documented at the MkDocs and Material websites. The additional docs/css/custom-mkdocs.css file increases the font size for tables in Markdown files.

3. Preview

To preview the MkDocs project website locally, run:

mkdocs serve

MkDocs includes a live preview server accessible at http://127.0.0.1:8000 that allows you to preview your changes as you write documentation. Any changes to the mkdocs.yml configuration file and markdown files inside the docs directory will be reflected in real time.

4. Deploy

To deploy the MkDocs project website, run:

mkdocs gh-deploy

MkDocs will build the source files in the docs directory into a static site inside the site directory (in .gitignore). It will then deploy this site to the gh-pages branch of the GitHub repository. GitHub Pages will handle updates and render the project website.

Deploy Doxygen Documentation

1. Set up Environment

On macOS, install Doxygen by running

brew install doxygen

Generate a template configuration file:

doxygen -g Doxygen.original

Generate a template layout file:

doxygen -l DoxygenLayout.original.xml

Do not edit these original files directly (add them to .gitignore). Instead, make copies for editing, which makes it easier to track changes later:

cp Doxyfile.original Doxyfile
cp DoxygenLayout.original.xml DoxygenLayout.xml

2. Configure Docs Generation

Modify the Doxyfile to configure documentation generation. To review your changes, run:

diff Doxyfile.original Doxyfile

For this project, the modified settings are:

Key	Value
`PROJECT_NAME`	"CppToday"
`PROJECT_BRIEF`	"What day is it today? A minimal C++23 program."
`PROJECT_LOGO`	`docs/img/logo-doxygen.svg`
`PROJECT_ICON`	`docs/img/icon.svg`
`OUTPUT_DIRECTORY`	`docs/doxygen` (in `.gitignore`)
`LAYOUT_FILE`	`DoxygenLayout.xml` (see below)
`INPUT`	`src`
`RECURSIVE`	`YES` (will look recusrively into `src`)
`EXCLUDE`	`tests`
`HTML_EXTRA_STYLESHEET`	`docs/css/custom-doxygen.css` (see below)
`DISABLE_INDEX`	`NO` (will show horizontal tabs at top)
`HTML_FORMULA_FORMAT`	`svg` (instead of `png`; requires Inkscape)
`GENERATE_LATEX`	`NO`
`HAVE_DOT`	`YES` (requires Graphviz, for `svg`)
`CALL_GRAPH`	`YES`
`CALLER_GRAPH`	`YES`
`DOT_IMAGE_FORMAT`	`svg` (instead of `png`, for nicer look)

The most important setting for Doxygen is INPUT, which tells Doxygen to look into the src directory and its subdirectories, parsing code and comments to generate corresponding documentation.

The extra docs/css/custom-doxygen.css removes the panel synchronization button from the Doxygen website, which the author finds distracting.

3. Configure Layout

Edit DoxygenLayout.xml to customize the layout for Doxygen pages. To see your changes, run:

diff DoxygenLayout.original.xml DoxygenLayout.xml

In this project, the following lines were added to the <navindex> element to add two tabs for quick navigation to the GitHub repository and the MkDocs project website:

<tab type="user" url="http://github.com/aafulei/cpp-today/" title="GitHub"/>
<tab type="user" url="../../" title="Back to Project Website"/>

4. Deploy

Because MkDocs manages the entire docs directory and Doxygen outputs HTML files inside docs/doxygen, no additional deployment steps are needed. Running:

mkdocs gh-deploy

will deploy both the MkDocs site and the Doxygen-generated pages as part of the overall project website.

For source code and project files, please see the GitHub repository.
